LEAK TEST 1.0

The electrical part of the leak test equipment is powered from the classic 230V / 1A mains distribution. It consists of a RITTAL distribution box, which contains the SIMATIC S7-1200 control unit and the SIMATIC KTP700 Basic visualization panel from SIEMENS.

At the bottom right is the HARTING mains connector and below it the main switch of the device. The MULTICONTACT connection connector is located above the power connector, allowing you to connect measuring adapters. The connector connection consists of pneumatic and electrical connections.

It is possible to connect a USB disk from the left side of the device, to which the device records the measurement process. The second connector is a LAN interface, providing programming of the control unit or HMI panel, or connection to higher levels of control, such as. FIS.

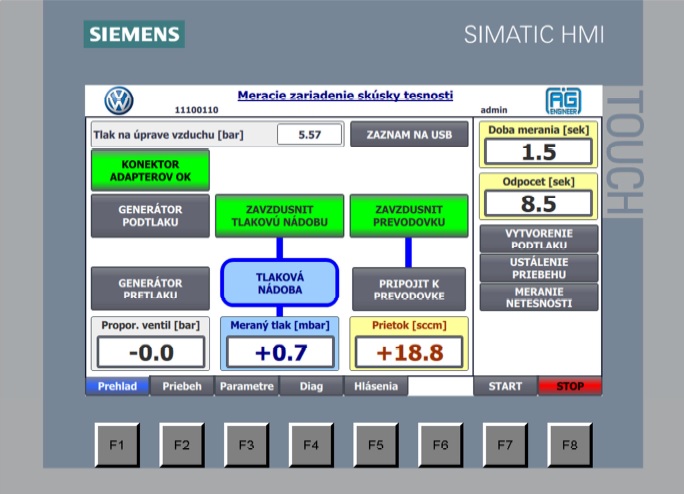

The device is portable and requires 230V from the standard electrical network and 6 bar compressed air for its operation. It uses two measuring principles to measure tightness, based on measuring the pressure difference during the measurement period and the air flow between the measuring device and the gearbox. The entire device is controlled and visualized via the SIEMENS KTP700 HMI panel, the environment of which was created in the SIEMENS SIMATIC TIA Portal V13 application.
